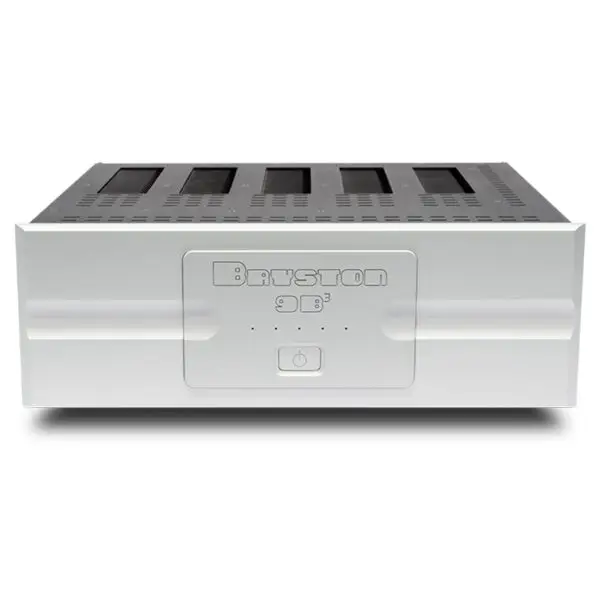

Bryston – 9B Cubed – 5 Channels

95.845,00 kn

5-kanalno pojačalo snage za “Home Theatre” sustave

Kategorije: , Oznaka:

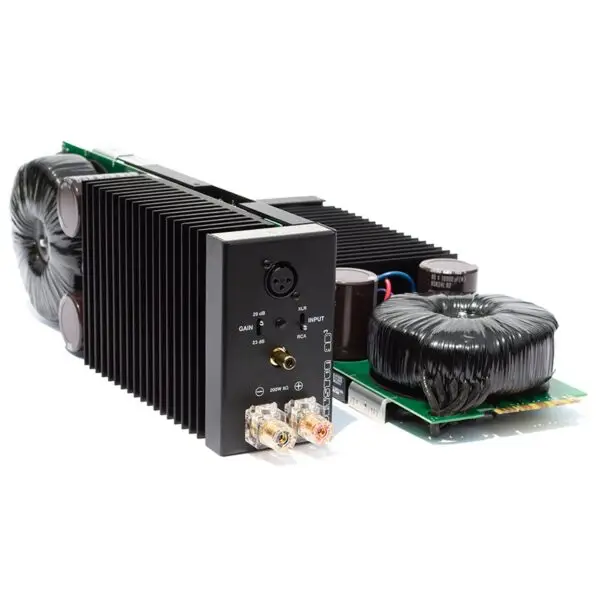

The Bryston 9BSST² is a five channel amplifier designed with home theatre installation in mind. Each channel is built on its own removable assembly, which means that any channel can be swapped if necessary and may be configured with fewer channels if so required.

Features:

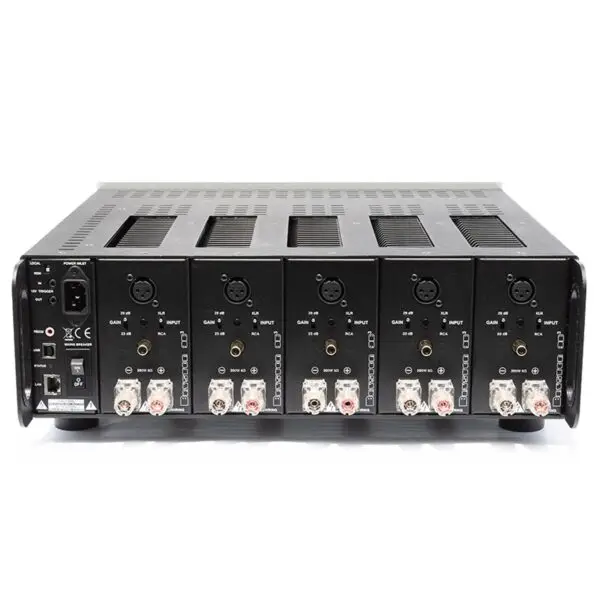

Balanced and unbalanced inputs
Selectable gain at 23 or 29dB
No fans or other moving parts
Convection cooled and housed in a fully aluminum chassis

Options:

Available with silver or black faceplate (3U + .55”)
17” (without handles) or 19” (with handles) faceplate available (non-rack mountable)
Rack mountable Pro Edition available in black (see SST² Pro for more details)
Power Capabilities:

140W into 8 Ohms (200W into 4 Ohms)
Reviews:

POWER OUTPUT: 120 watts per channel into 8 ohms; 200 watts per channel into 4 ohms


GAIN / SENSITIVITY: 29dB (1.1Vin = 120W @ 8 Ohms); 23dB (2.2Vin = 120W @ 8 Ohms); 17dB (4.4Vin = 120W @ 8 Ohms )


INPUT IMPEDANCE: 30K ohms (±5%) single ended; 20K ohms (±5%) balanced (each leg)


DISTORTION: < 0.005% 20Hz to 20kHz at 120 watts into 8 ohms,


IMD & THD+NOISE: < 0.007% 20Hz to 20kHz at 200 watts into 4 ohms


NOISE: Measured with input shorted (20Hz to 20kHz.):


110dB below rated output 29dB gain (- 73dBu)

>113dB below rated output 23dB gain (- 76dBu)

>116dB below rated output 17dB gain (- 79dBu)


SLEW RATE: >60 volts per microsecond


POWER BANDWIDTH: <1 Hz to over 100 kHz


DAMPING FACTOR: Over 500 at 20 Hz, ref. 8 ohms


DIMENSIONS: 19″ Rack mount version: 48.3 x 13.3 x 48.5cm with handles

17” version w/o handles: 43.2 x 13.3 x 44.4cm


SHIPPING WEIGHT: approx. 34.5kg


POWER CONSUMPTION & HEAT LOAD:


single channel 120W @ 8 ohms: 242 Watts

5 channels @ 120W @ 8 ohms: 1397 Watts

Max. Heat Dissipation 8 ohms: 2720 Btu/Hr.

single channel 200W @ 4 ohms: 422 Watts

5 channels @ 200W @ 4 ohms: 2295 Watts
